M34A SL
Petzl - Am'D
Petzl Am'd screw gates are one of Petzl's go to connectors for equipment.
The new H-Beam model can be fitted with the Petzl Captive Bar to prevent crossloading where preferable.

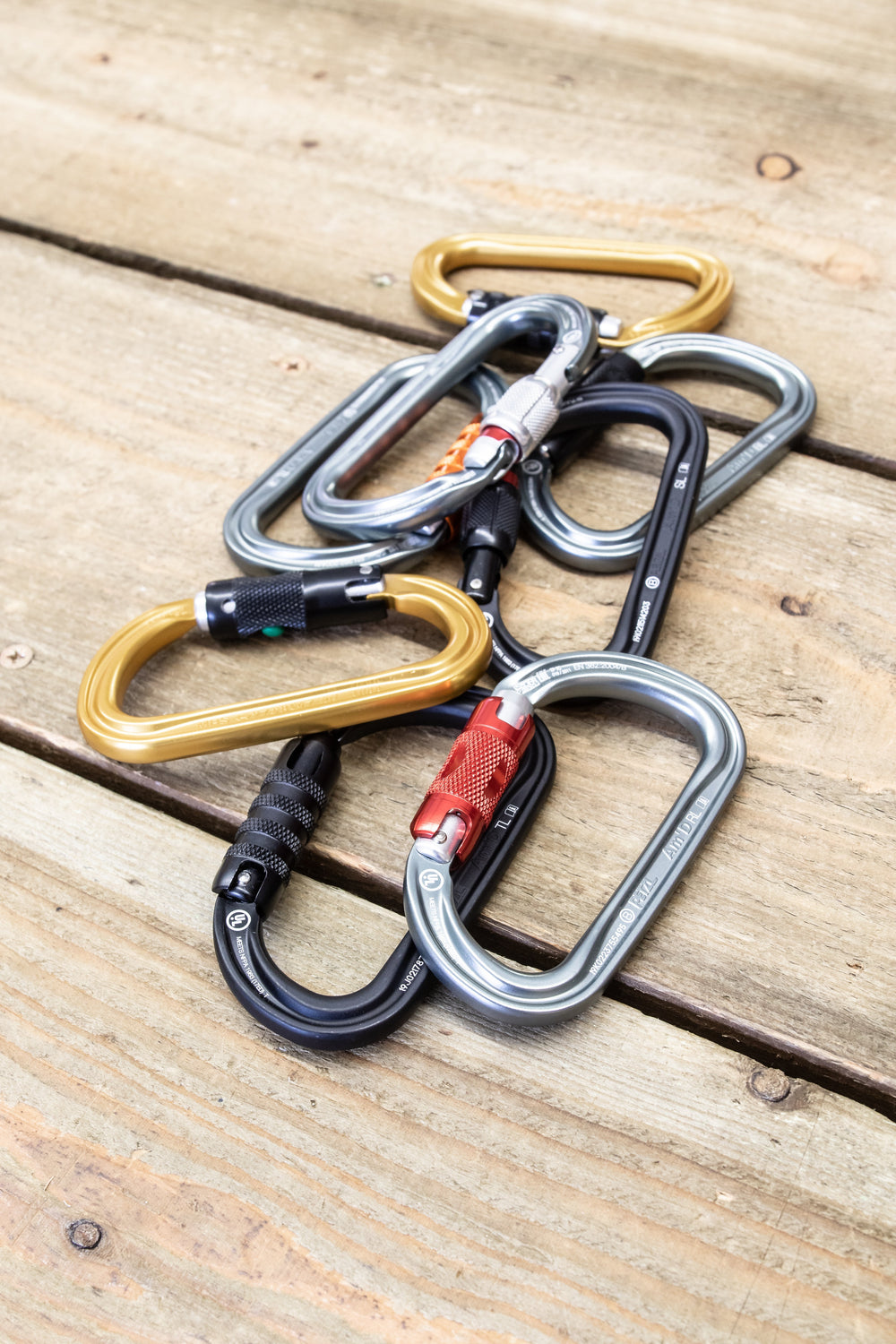

Available in Screw-Lock, Triact-Lock, Twist-Lock and Ball-Lock.
Petzl Am'd screw gates are one of Petzl's go to connectors for equipment.
The new H-Beam model can be fitted with the Petzl Captive Bar to prevent crossloading where preferable.
Available in Screw-Lock, Triact-Lock, Twist-Lock and Ball-Lock.
| Weight | Dimensions | Major Axis Strength | Minor Axis Strength | Open Gate Strength | Gate Opening | Material | Conformity | |
|---|---|---|---|---|---|---|---|---|

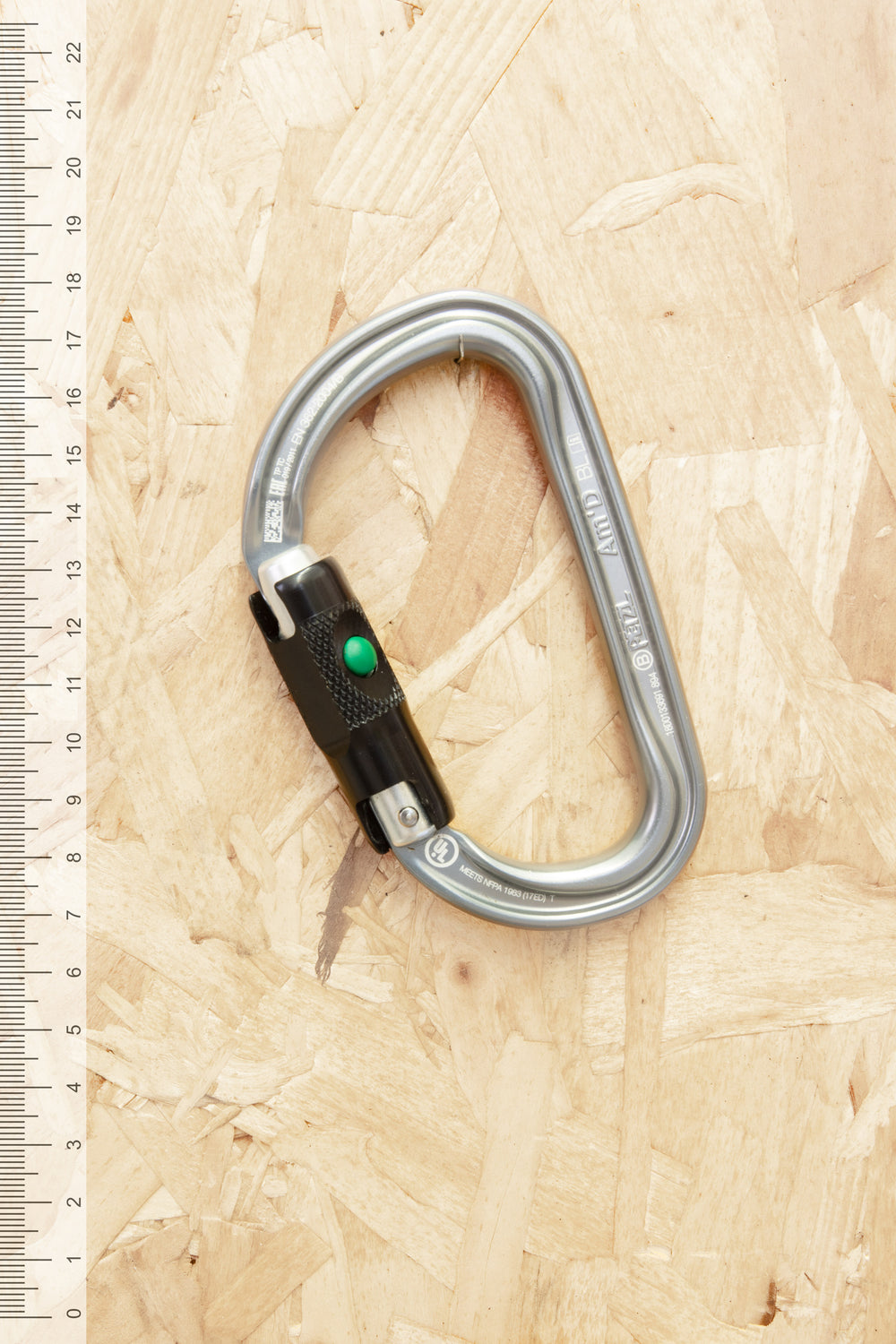

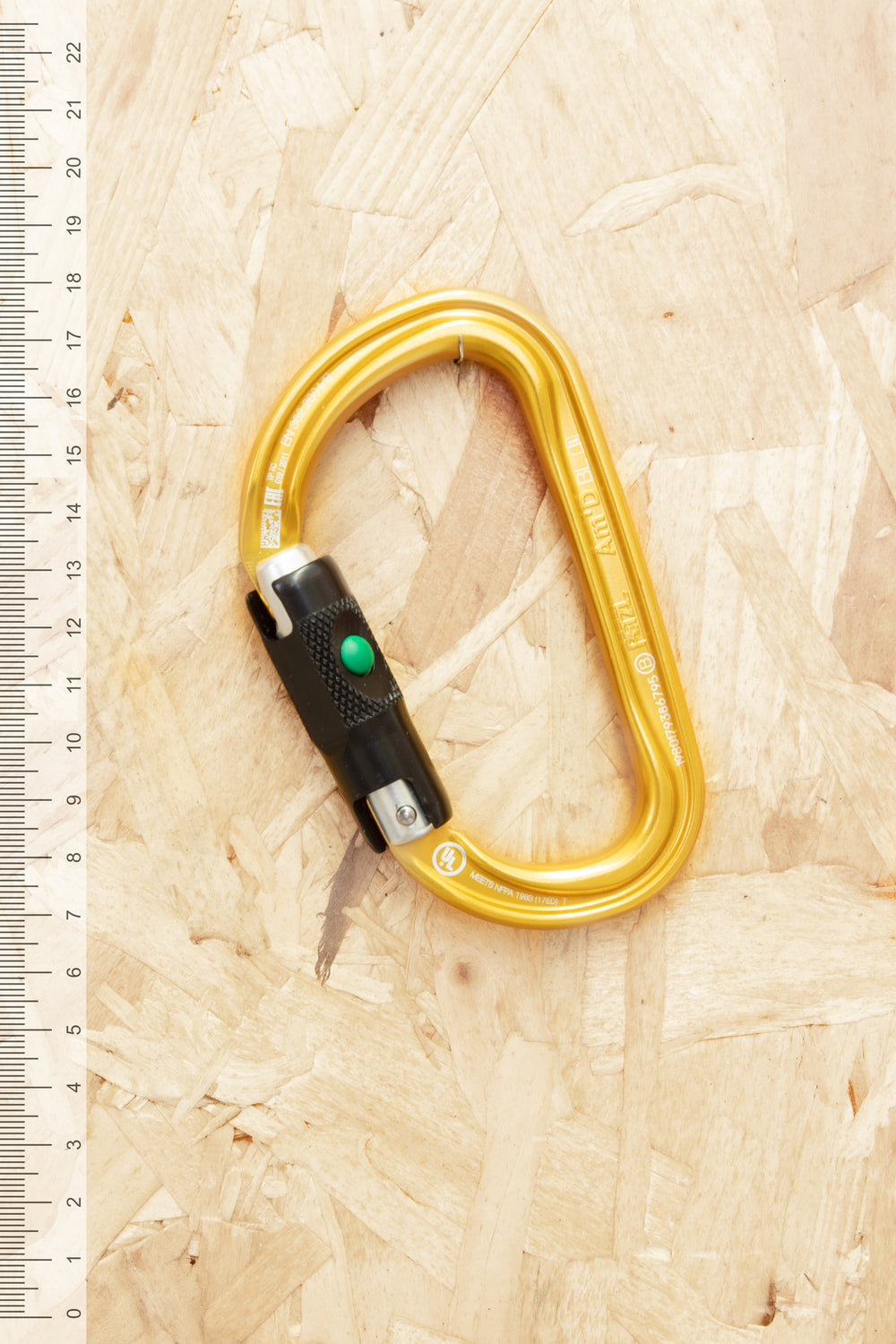

| Ball-Lock | Weight
75g
|
Dimensions
110 x 65mm
|
Major Axis Strength
27kN
|
Minor Axis Strength
8kN
|
Open Gate Strength
7kN
|
Gate Opening
25mm
|
Material
Aluminium
|
Conformity
CE EN 362, EAC, NFPA 1983 Technical Use, CE EN 12275
|

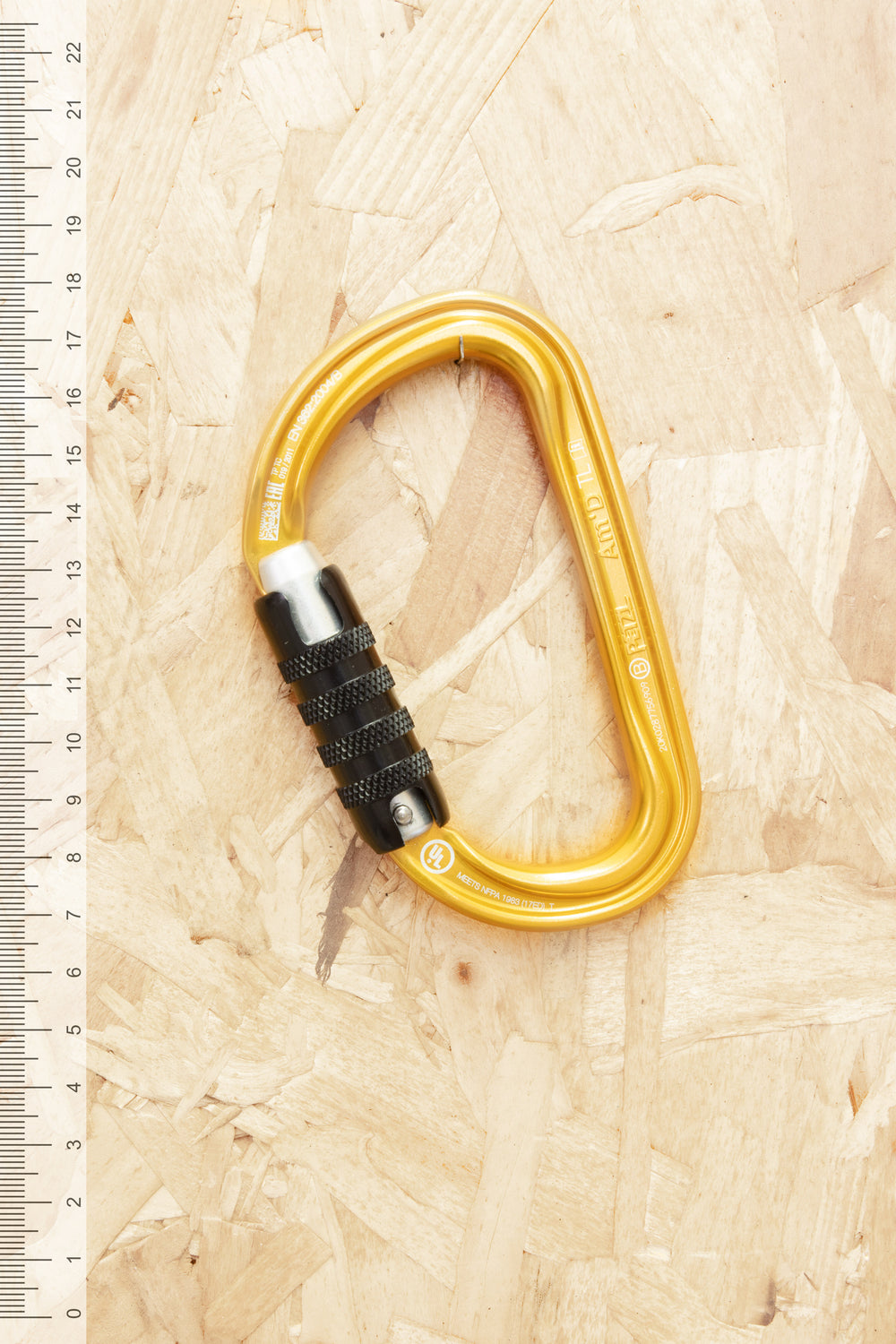

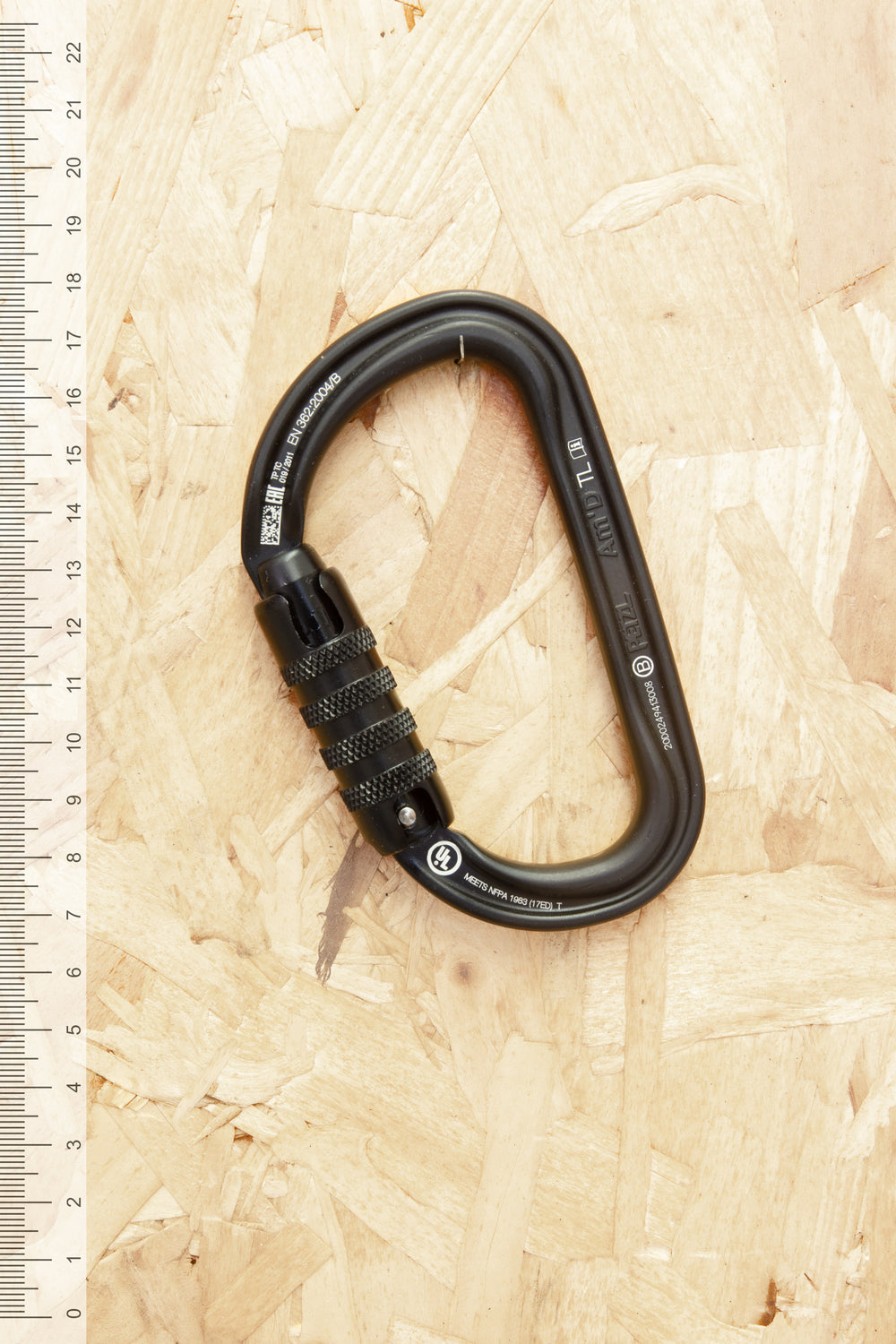

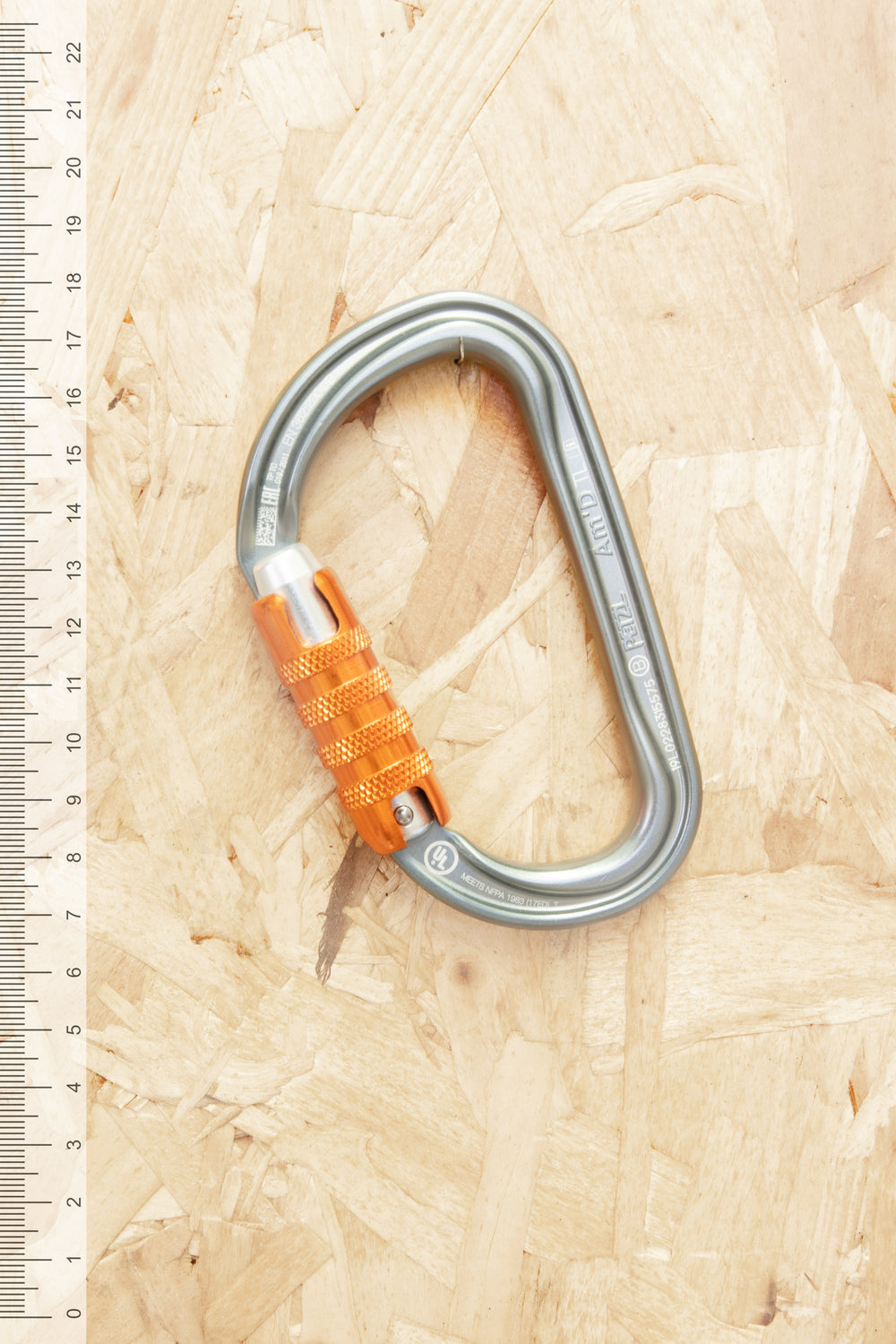

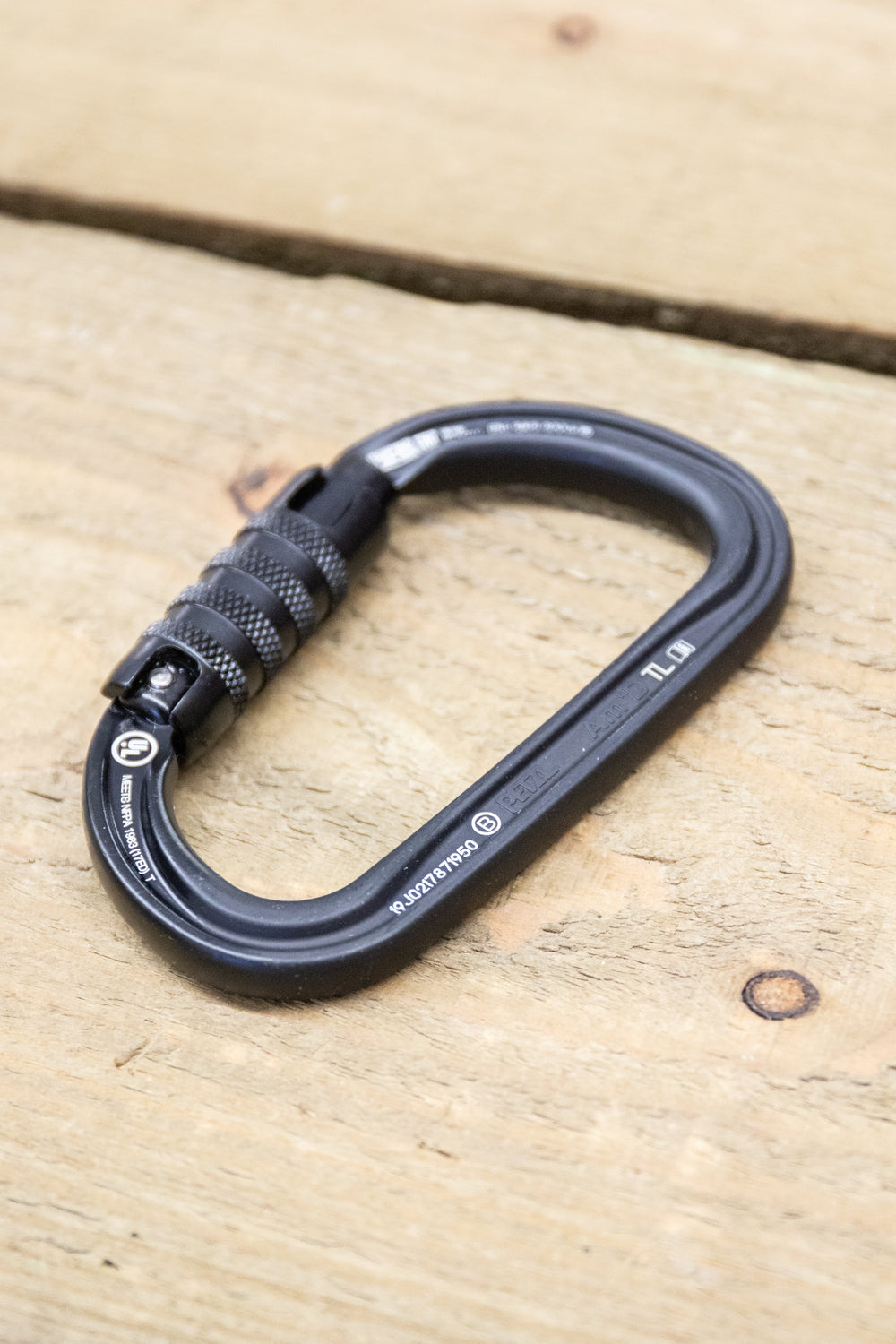

| Triact-Lock | Weight
75g
|
Dimensions
110 x 65mm
|
Major Axis Strength
27kN
|
Minor Axis Strength
8kN
|
Open Gate Strength
7kN
|
Gate Opening
25mm
|
Material
Aluminium
|
Conformity
CE EN 362, EAC, NFPA 1983 Technical Use, CE EN 12275
|

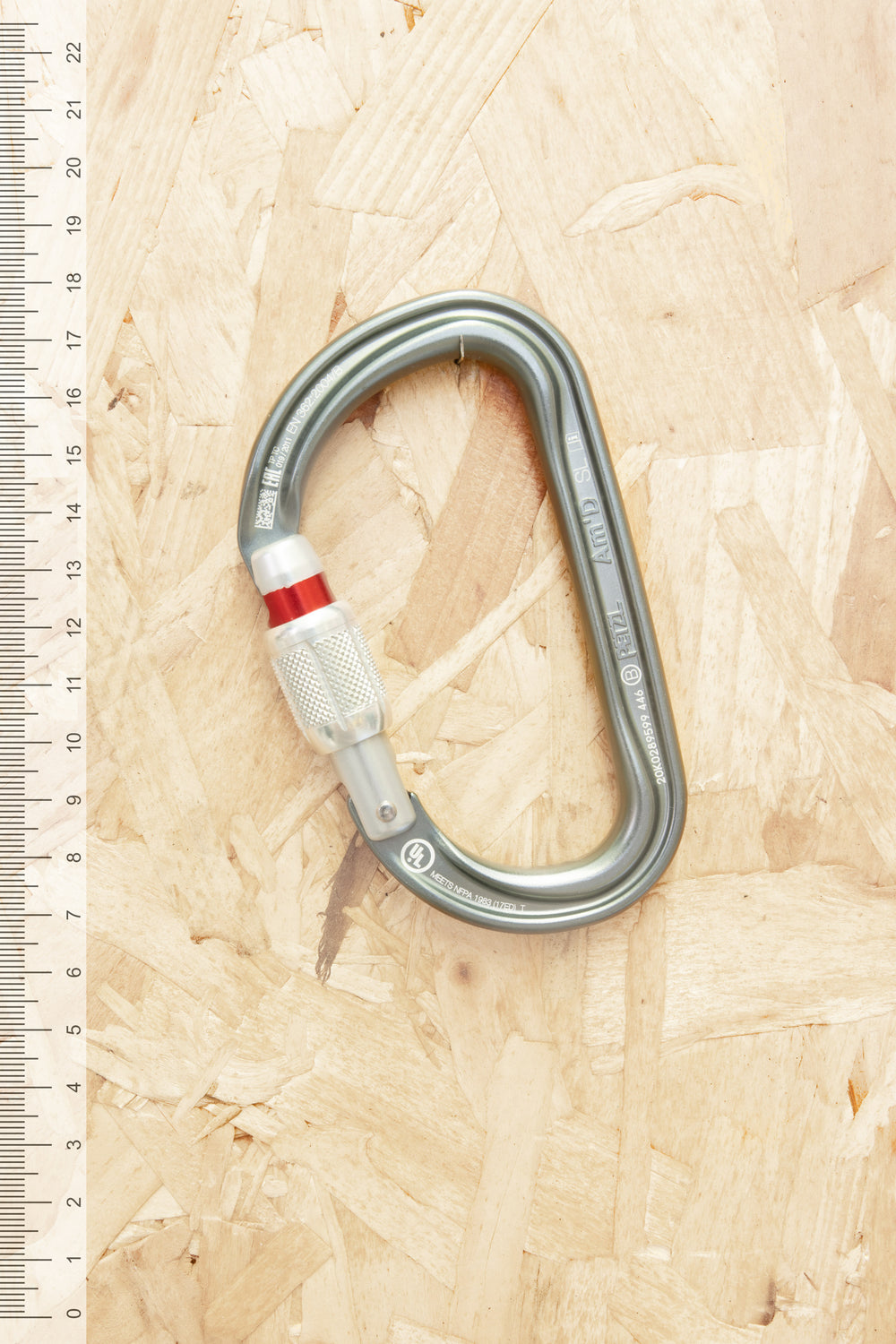

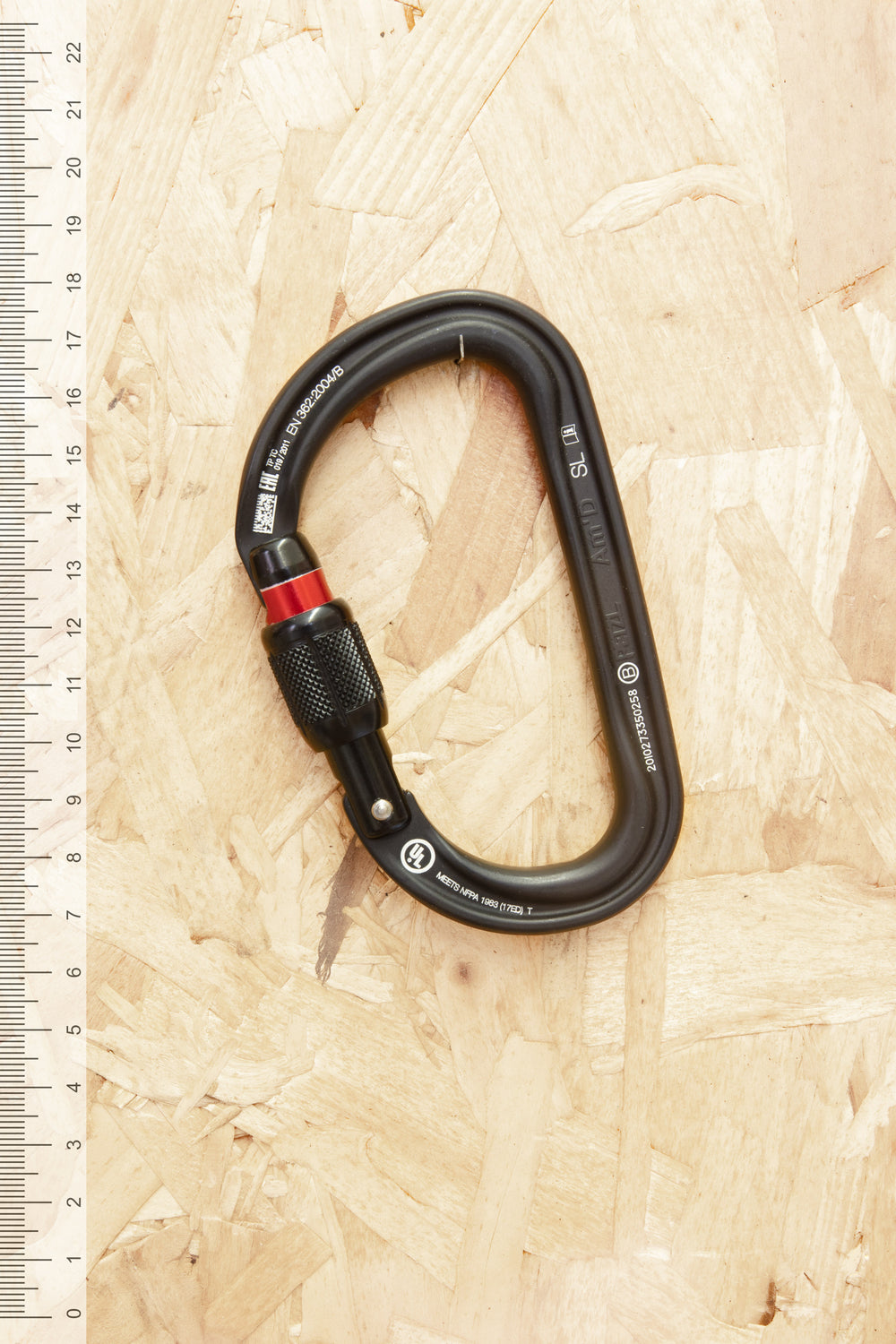

| Screwgate | Weight
70g
|
Dimensions
110 x 65mm
|
Major Axis Strength
27kN
|
Minor Axis Strength
8kN
|
Open Gate Strength
7kN
|
Gate Opening
25mm
|
Material
Aluminium
|
Conformity
CE EN 362, EAC, NFPA 1983 Technical Use, CE EN 12275
|

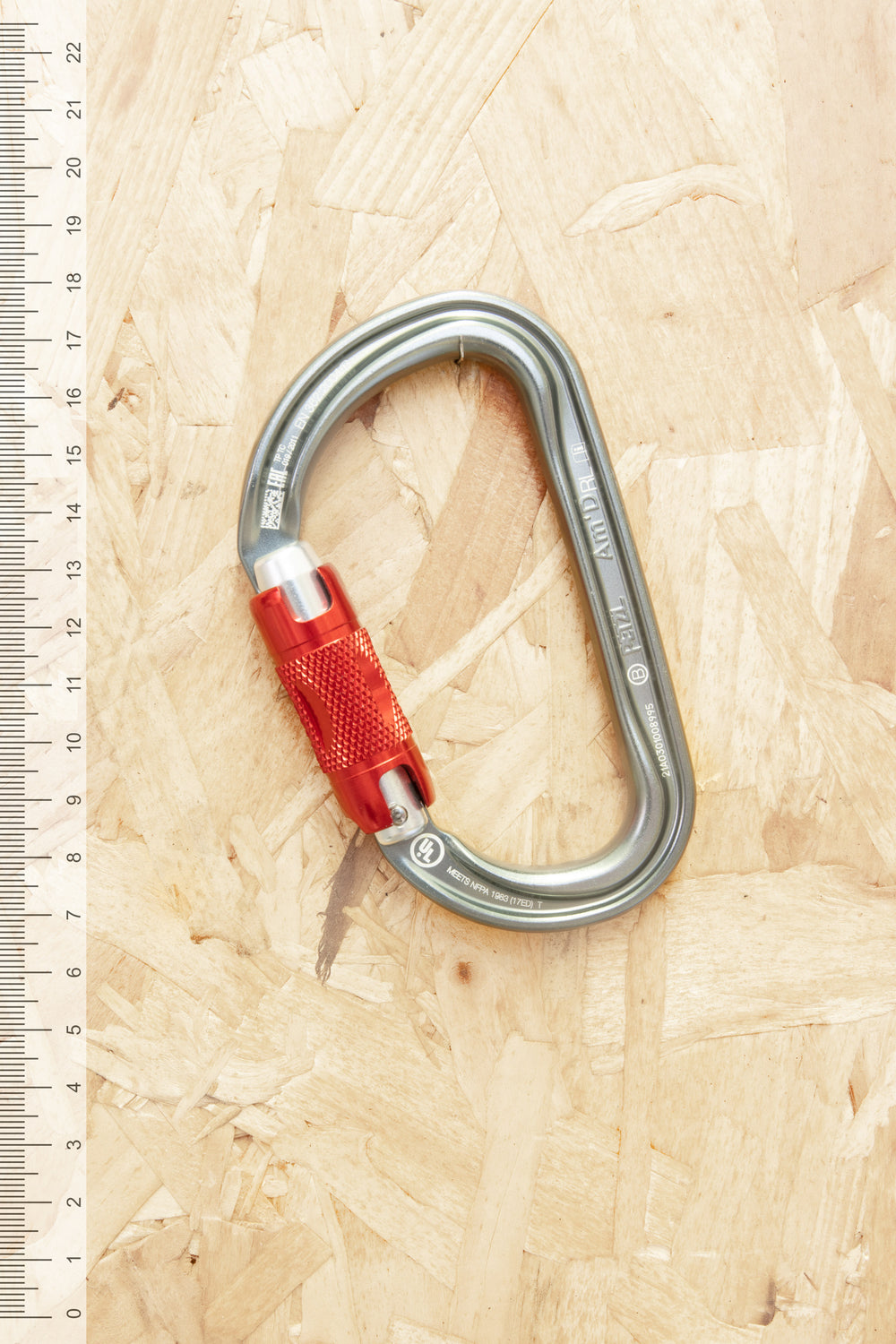

| Twist-Lock | Weight
75g
|
Dimensions
110 x 65mm
|
Major Axis Strength
27kN
|
Minor Axis Strength
8kN
|
Open Gate Strength
7kN
|
Gate Opening
25mm
|
Material
Aluminium
|
Conformity
CE EN 362, EAC, NFPA 1983 Technical Use, CE EN 12275
|
